To meet the test requirements,Correct selection is required before procurement. If you are a direct user,We will arrange technical personnel to communicate with you. If you are a distributor, please provide detailed parameters of the tested product as much as possible. We can provide Free selection service,You don't need to worry about whether to purchase or not. Worldwide debugging services,No matter how harsh your testing site may be. Perfect after-sales service,Welcome to our company for on-site inspection.

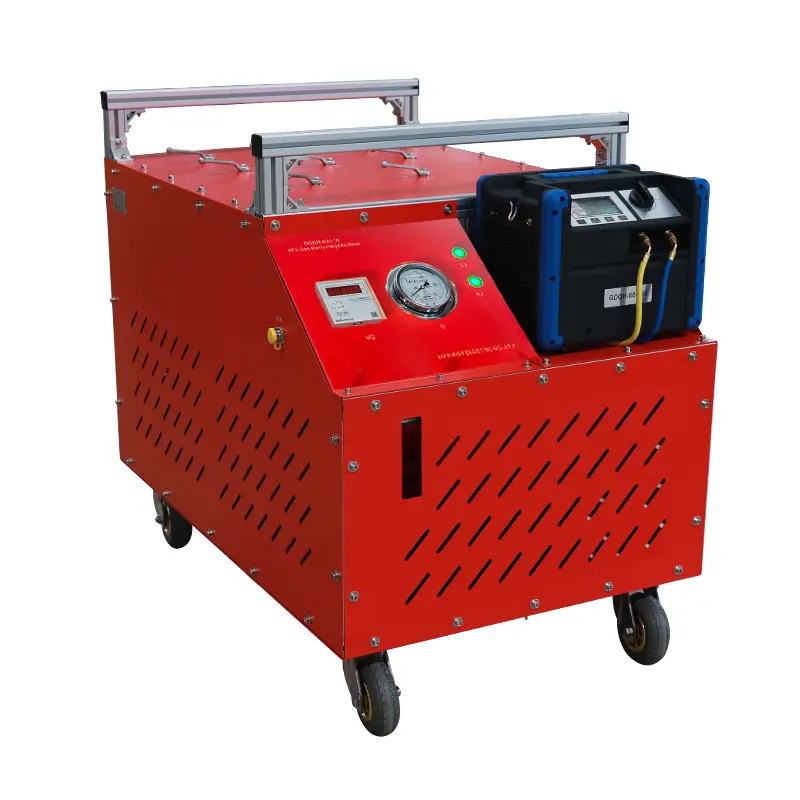

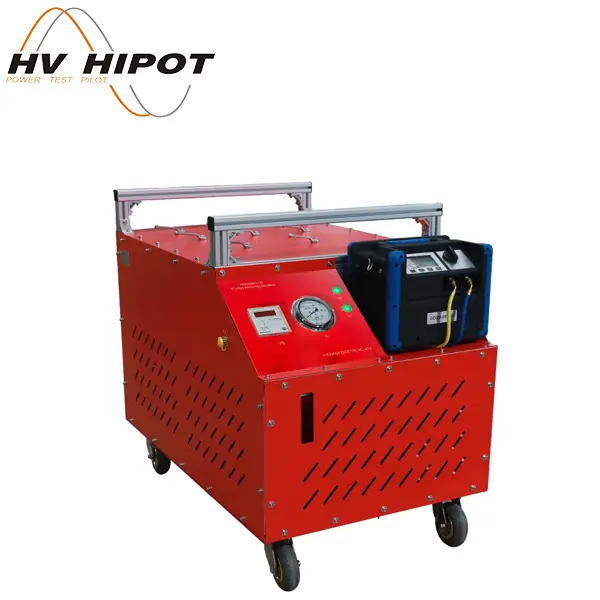

GDQH-601-50 SF6 Gas Recycling Machine
Service ：
  • 1、Looking for global OEM agency services
  • 2、Appearance and image design
  • 3、Customization of optional functions
  • 4、Customized operation video
  • 5、Special technical training (remote live streaming/on-site)
  • 6、Design of special occasions and special test plans
  • 7、Integrated System Development
Technical Parameter overview



  1.  Vacuum pump: Leybold D16C, 16m3/H@50Hz
  2. Compressor: GDQH-301H 6.75m3/H
  3. Cooling system: Air-cooled unit
  4. Storage tank 50L container, 3.6MPa
  5. Valve: ball-valve 3-365R01 DN20
  6. Control system: It can perform various operations and instrument monitoring of the device.
  7. Connection pipe: DN10 High pressure hose M20*1.5



  1. Vacuum rate: 16M3/H (max. 25M3/H), Vacuum degree: 10Pa
  2. Inflation rate: 10M3/H (The pressure of the pipeline is 1.6Mpa)
  3. Recovery rate: 6.75M3/H (gas recycling)
  4. SF6 recovery rate: above 95-98%.
  5. Working environment temperature: -10℃~+45℃
  6. Storage tank: 50L, 3.6MPa.
  7. Initial recovery pressure: 8bar.
  8. Power supply: 220V±10%, 50/60Hz.
  9. Power: 4kW.
