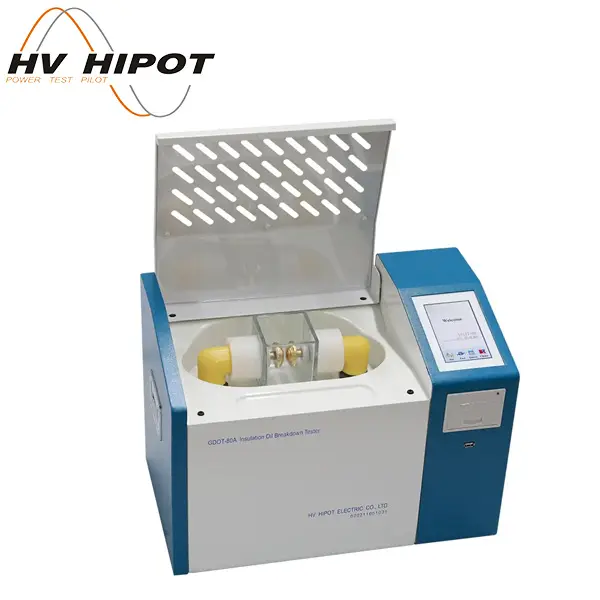

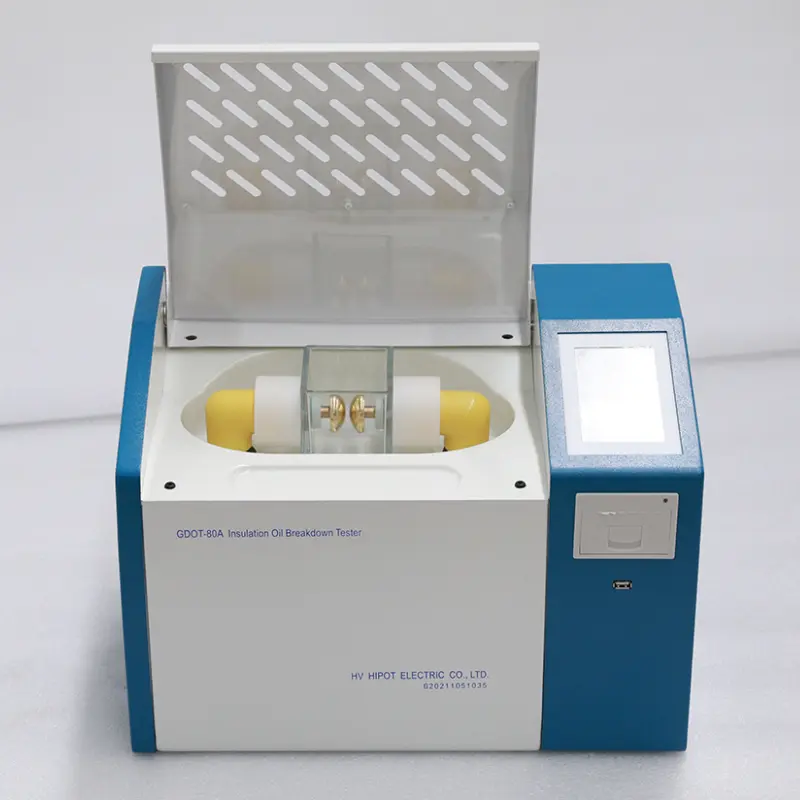

GDOT-80A IEC Standard Insulation Oil Breakdown Tester 80kV
Service ：
1、Looking for global OEM agency services
2、Appearance and image design
3、Customization of optional functions
4、Customized operation video
5、Special technical training (remote live streaming/on-site)
6、Design of special occasions and special test plans
7、Integrated System Development
Technical Parameteroverview
Output voltage:
0-80kV(optional)
Power distortion rate:
<3%
Capacity:
1.5kVA
Measurement accuracy:
±3%
Stop boosting voltage:
10~80kV adjustable
Static time:
0-15 minutes adjustable
Voltage increasing interval time:
0-5 minutes adjustable
Stirring time:
0-120 seconds adjustable or continuously
Voltage increasing times:
1-10 times adjustable
Voltage increasing rate:
0.5kV/s-5.0kV/s adjustable
Power input:
AC220V± 10%, 50Hz/60Hz±1Hz
Power:
200W
Working temperature:
0-45℃
Humidity:
<75%RH
Dimension:
460*280*320mm
● It adopts a microprocessor to automatically complete the operations of boosting, holding, stirring, static, calculating, printing, etc., and can perform oil circulation withstand voltage test in the range of 0-80 kV. ● Large LCD touch screen. Chinese and English interchangeable menu prompts; beautiful appearance and small size. ● The instrument is easy to operate, the operator only needs to make a simple setting, and the instrument will automatically complete the withstand voltage test of 1 cup of oil sample according to the setting. The breakdown voltage value and the number of cycles of 1 to 10 times are automatically stored. After the test is completed, the thermal printer can print out the breakdown voltage values and average values. ● Instrument test execution standards include industry standards, national standards and IEC60156 standards, and the operation is simple and convenient. ● With power-down hold, 100 experimental results can be stored and the current ambient temperature and humidity can be displayed. ● With over-voltage, over-current, limit and other protection to ensure the safety of operators. ● With temperature measurement display function and system clock display. ● Standard RS232 interface, can communicate with the computer. ● USB interface, can export test data.
