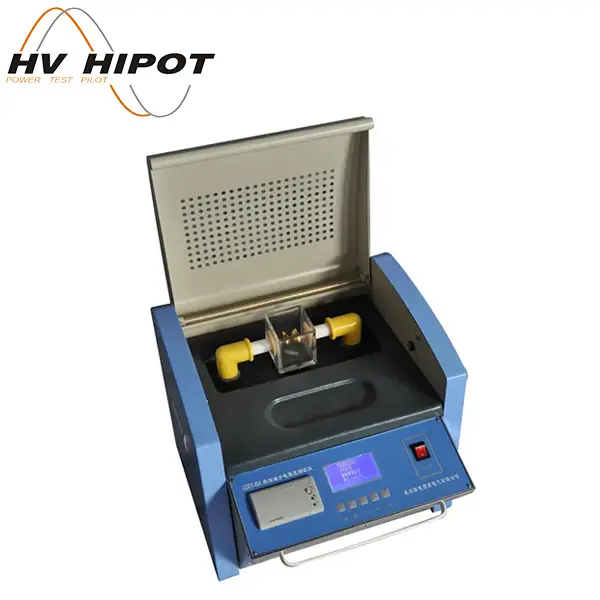

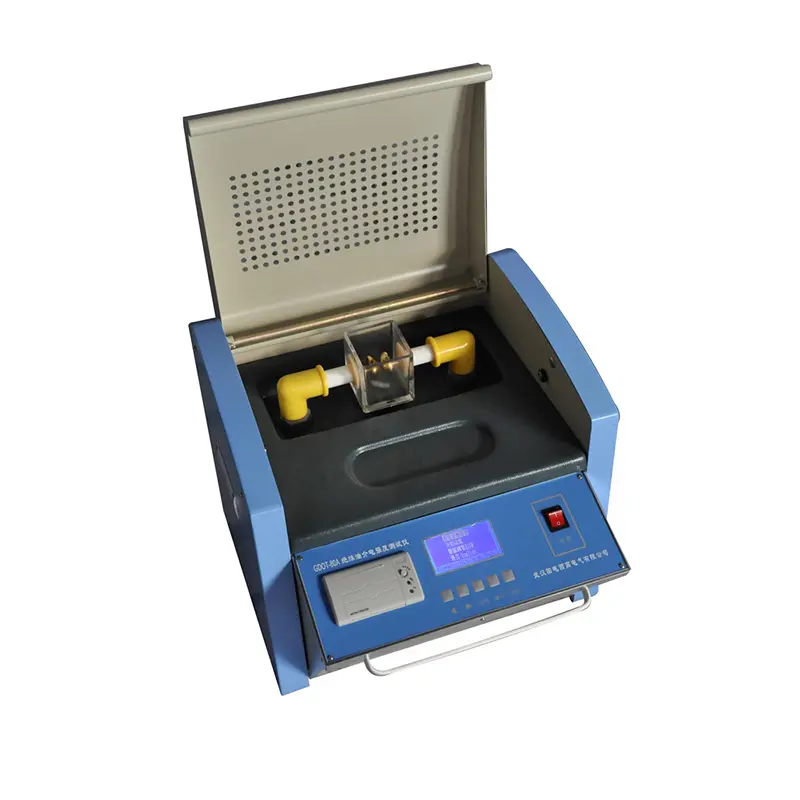

GDOT-80A Insulation Oil Tester
Service ：
1、Looking for global OEM agency services
2、Appearance and image design
3、Customization of optional functions
4、Customized operation video
5、Special technical training (remote live streaming/on-site)
6、Design of special occasions and special test plans
7、Integrated System Development
Technical Parameteroverview
Power supply
AC220V±10%, 50Hz
Output voltage
0~80kV (Selectable)
Capacity
1.5kVA
Power
200W
Speed of voltage increase
2.0~3.5kV/s (Adjustable)
Voltagemeasuring accuracy
±3%
Waveform distortion
≤3%
Boosting interval
5min (Adjustable)
Standing time
15min (Adjustable)
Boosting times
1~6 (Selectable)
Operating environment
Temperature: 0℃-45℃
Humidity:Max. relative humidity75%
Dimension
465x385x425mm
●Please read the operation manual carefully before operating. ●Please check if the tester is well connected to earth before testing. ●It is forbidden to move or lift the testing cover in the process of testing to avoid injury by high voltage. Power must be off before replace sampling oil. ●Handle with care when taking off or closing high voltage testing cover! ●If the tester works abnormally after insulating oil breaks down, please power off the tester for 10 seconds, then restart again. ●After printing paper is exhausted, please refer to printer explanation part (or manual appendix) to replace printing paper to avoid damage of printer head. ●Keep the tester far from moisture, dust and other corrosive materials, and keep it far away from high temperature sources. ●Handle with care in transportation. Don’t put up side down. ●The manual may revise accordingly without further notice in advance. If any query, please contact us.
