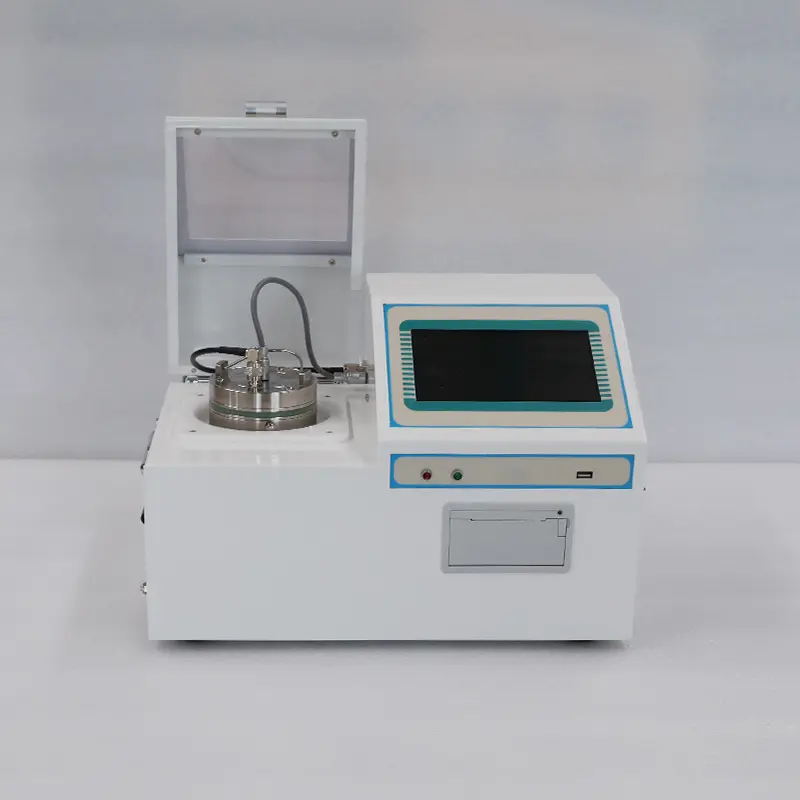

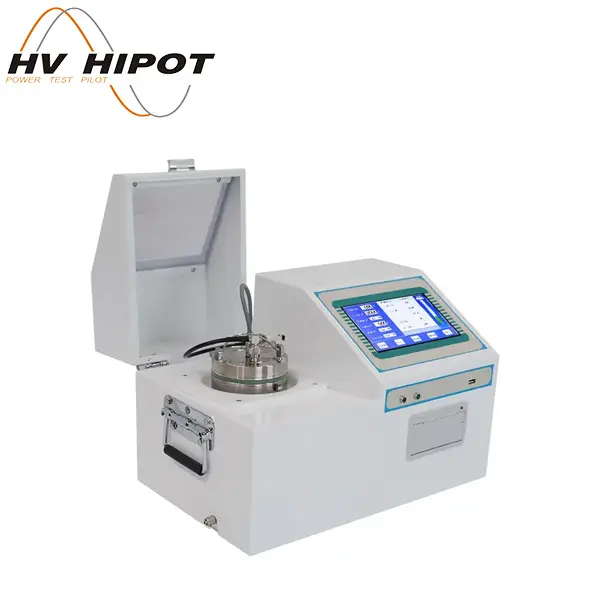

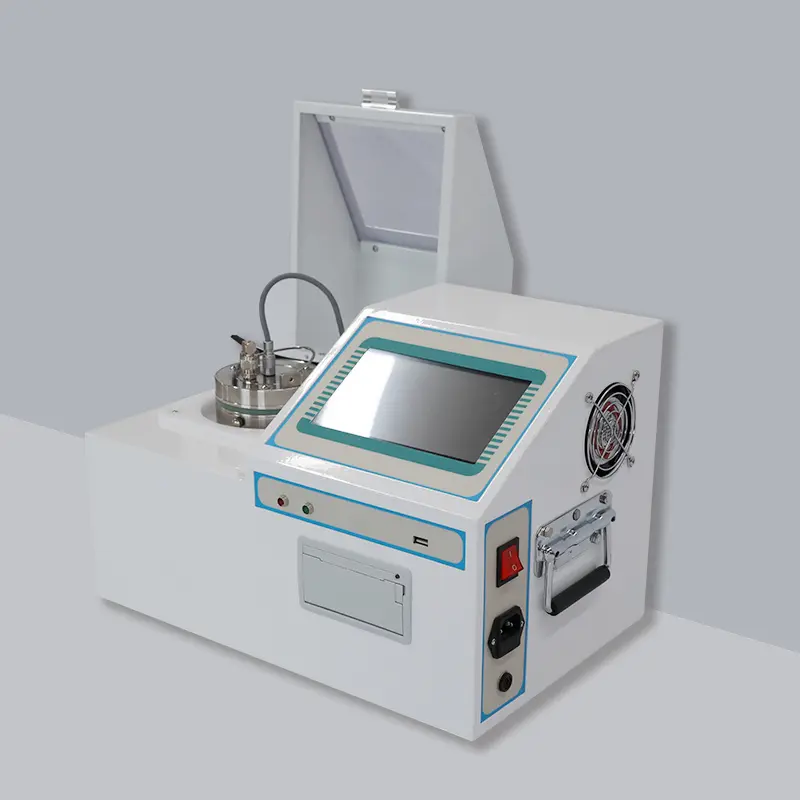

GD6100 Insulation Oil Tan Delta Tester (Oil Dissipation Factor Tester)
Service ：
1、Looking for global OEM agency services
2、Appearance and image design
3、Customization of optional functions
4、Customized operation video
5、Special technical training (remote live streaming/on-site)
6、Design of special occasions and special test plans
7、Integrated System Development
Technical Parameteroverview
Conditions
-5 ℃ -40 ℃; RH <80%
Power Supply
AC 220V ± 10%
High voltage output
1000V-2200V, every step 200V
Accuracy: 2%
Capacity: 50VA;Output Current is 25mA
Temperature induction furnace
Max. Power 500W
Temperature control range
<100 ℃
Temperature measurement error
± 0.5 ℃
Temperature control error
± 1 ℃
Temperature control time
less than 20min, indoor temperature to 90℃
Measure range
tgδ Unlimited
Cx 15pF-300pF
Rx 10M-10T
Accuracy
△ tgδ: ±1.0% of the reading + 0.020%
△ Cx: ± 1.0%of the reading+ 0.5pF
△ Rx: 10% of the reading
Relative dielectric constant
εr automatic calculation
Volume resistivity
ρ automatic calculation
Dimensions
450 (L)*310 (W)*360 (H)
Weight
18kg
GD6100 is high-precision instrument for testing dielectric loss angle and volume resistivity of insulating oil or other insulating liquids. With its integrated structure, it contains major components such as dielectric loss oil cup, temperature controller, temperature sensor, dielectric loss test bridge, AC testing power supply, standard capacitors, Megger, DC high voltage source.
●Advanced high-frequency induction heating mode, homogeneous heating, high speed, and easy to control. ●All digital technology, automatic measurement. ●Large LCD screen, with printer. ●AC-DC-AC power supply conversion mode.
