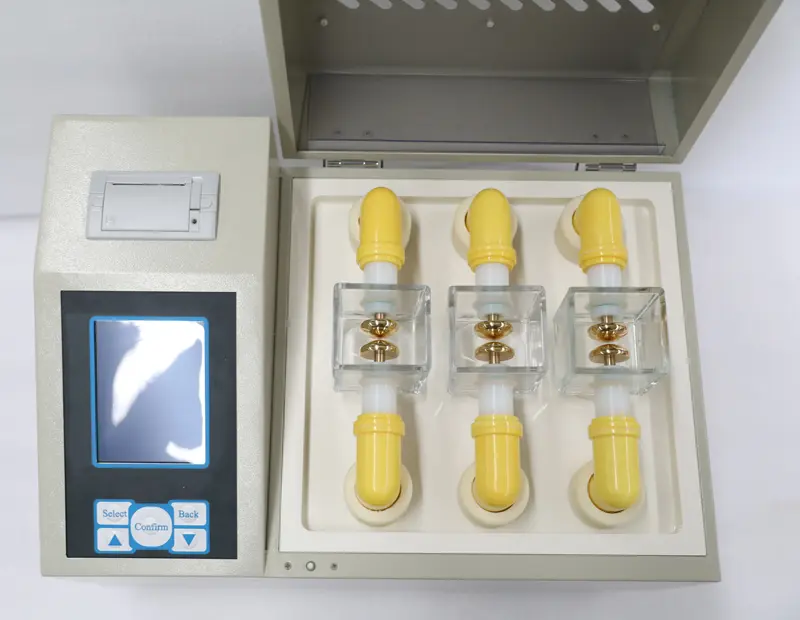

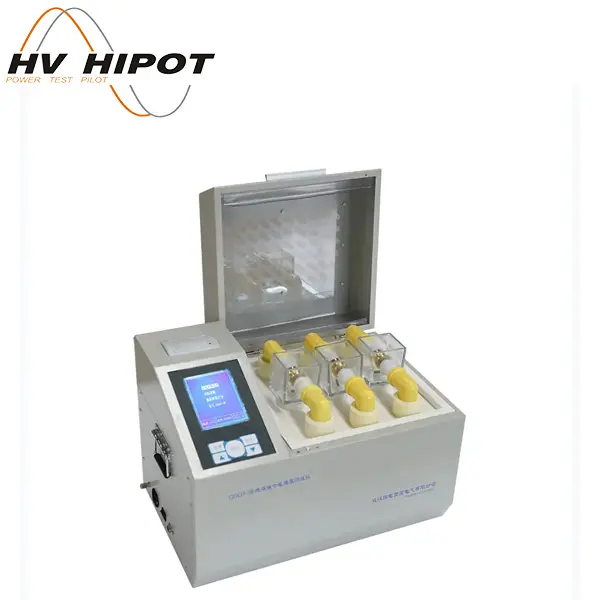

GDOT-3B 100kV Three Cups Insulation Oil Breakdown Voltage (BDV) Tester
Service ：
1、Looking for global OEM agency services
2、Appearance and image design
3、Customization of optional functions
4、Customized operation video
5、Special technical training (remote live streaming/on-site)
6、Design of special occasions and special test plans
7、Integrated System Development
Technical Parameteroverview
Output voltage
0-100kV optional
Power distortion rate
<3%
Voltage increasing speed
0.5~5kV/s adjustable
Display
Large LCD screen
Electrode gap
standard 2.5mm
Boost times
1~10 times
Standing time
15 min (adjustable)
Boost interval
5 minutes (adjustable)
Booster capacity
1.5kVA
Measurement accuracy
±3%
Power input
AC220V± 10%, 50Hz±1Hz
Power
200W
Working temperature
0-45℃
Humidity
<75%RH
Dimension
585mm*390mm*410mm
Weight
43kg
●Adopts a microprocessor, three cups in one, and automatically completes the operations of boosting, holding, stirring, standing, calculating, printing, etc., and can perform oil circulation withstand voltage test in the range of 0-100kV. ●LCD screen display. ●The operation of this instrument is simple, the operator only needs to make simple settings, and the instrument will automatically complete the test of 1-3 oil samples according to the settings. For each oil sample, the breakdown voltage value and number of cycles are automatically stored. After the test is completed, the thermal printer can print out the breakdown voltage value and average value of each oil sample. ●Power-down hold, can store 100 test results, and can display the current ambient temperature and humidity. ●It adopts single-chip microcomputer control for uniform speed boost, and the voltage frequency is accurate to 50Hz, making the whole process easy to control. ●With over-voltage, over-current limit and other protection to ensure the safety of operators. ●With temperature measurement display function and system clock display. ●Standard RS232 interface, can communicate with computer.
